Main features:

* Graphical operating interface, menu designed for convenient use
* High brightness and large size LCD, with touch screen input
* Flexible Plate layout with Blanks, Standards, Samples, Reference, QC in one screen
* Single or dual wavelength measurements, comprehensive qualitative and quantitative data-evaluation functions with cut-offs, curve-fits and transformation formulas

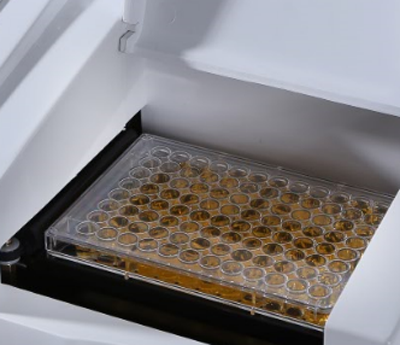

* Proven optical system with 8 channel optical fiber scanning, auto plate centering system positions the center of the cell accurately
* Performing 12 different tests just in one plate
* Multi-forms in result output including patient comprehensive report
* Auto Lamp adjustment and auto calibration, improve the efficiency of the system and reduce the cost
* Optional external mouse action and standard keyboard
* With serial RS-232 interface and parallel interface
* Easy connect to PC , comprehensive functions with Found WordStation PC software

Main technical parameters:

Net Weight：	8 Kg
Gross Weight:	10 Kg
Instrument Size:	460mm（L）×350mm（W）×197mm（H）
Package Dimension：	350mm×450mm×590mm
Power Supply：	AC 100V~240V, 50/60 Hz
Fuses：	2-φ5×20  BGXP3.15A  250V
Work environment：	Temperature：+5~+40℃；Relative humidity：20%~80%；Atmospheric pressure：700~1060hPa
Storage temperature：	-20℃~50℃
Photodetector:	Silicon Photodiode
Light Source：	Tungsten Halogen Lamp, OSRAM64607，8V/50W
Wavelength range:	400nm~850nm
Standard filters：	405nm，450nm，492nm，630nm & 4 optional
Additional filters:	on request, filter wheel for up to 8 filters
Reading  range：	0.000~4.000A
Resolution:	0.001A
Accuracy:	±0.008A
Reproducibility:	≤ 0.2%
Stability:	≤ ±0.003A in 10 minutes
Reading speed：	Single Wavelength ≤ 3s，Double Wavelength ≤ 6s
Warm-up time：	10min
CPU：	ARM core series
Programmable Items：	500
Interface：	RS-232 serial、Parallel printer、USB、Mouse and keyboard interface
Display：	320×240 LCD
Input Mode：	Touch Screen ,Touch pen
Memory Capability：	200,000 test data
Wavelength Accuracy（nm）	±1.0
Half-Width（nm）	≤8
Transmission Peak Ratio（%）	≥35
Shaking	Linear Shaking , 3 speeds≥35
Microplate types	96/ 48 -well plate
Printer	Built-in Thermal Printer,optional external printer

Remark:

MR-T00B and MR-T00BN methods：Single point calibration；Broken line regression (point-to-point)；linear regression；index regression；the logarithm regression；the double logarithm regression；Log-logit；power regression

MR-T00BS methods：Single point regression mode；Multi point regression；Linear regression；Exponential Regression；Logarithm Regression；Dual Logarithm Regression；log-logit Regression；Polynomial Regression

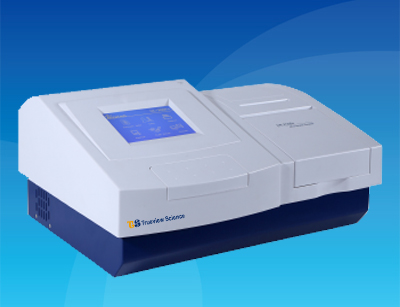

MR-T00B Elisa Reader is 10.4 inch color display screem ,windows operating system .

MR-T00BS Elisa Reader is 5.7 inch LCD display screen, sold best and performance stability .

MRT00BNElisa Reader is no display screen ,need connect with computer to operate, we will provide free PC software .Can support windows 7,10 ,xp .
