Automatic Lubricating Oils Oxidation Stability Tester(Rotat

Summary The instrument is designed and made as per industrial standard of Peoples Republic of China SH/T 0193 Lubricating oils-Determination of oxidation stability-Rotating pressure vessel method and ASTM D2272 Standard test Method for Oxid...

Standard: ASTM -- D2272 model: SYD-0193 E-mail: robin@pro-trueview.com

Summary
  The instrument is designed and made as per industrial standard of People’s Republic of China SH/T 0193 Lubricating oils-Determination of oxidation stability-Rotating pressure vessel method and ASTM D2272 Standard test Method for Oxidation Stability of Steam Turbine Oils by Rotating Pressure Vessel.
  The instrument is used to determine the oxidation stability of steam turbine with the same composition (oil base oil and additive) .Also can be used to determine new mineral insulating oil containing 2,6-BHT.

I. Main technical features
1. This instrument is fully designed as per standard SH/T0193. It can automatically determine pressure, record data, calculate
    oxidation time and finish the determination.
2. The test procedures can be done automatically. No need for human interference. The test precision is high.
3. The test curves and results will be shown on the screen and can be restored and printed if needed.

II. Main technical specifications
1. Power supply: AC220V±10%
2. Heating tube power: 2500W
3. Range for pressure sensor: (0~1.6)MPa,accuracy:±2‰
4. Temperature control range for oil bath:Room temperature~200.0℃, continuously adjustable.150.0℃ in common use.
5. Temperature control accuracy: ±0.1℃
6. Test sample:Two-bomb design, can do two samples at one time. Convenient to do parallel test.
7. Rotation speed: (100±5)r/min
8. Included angle between oxygen bomb and water level: 30°
9. Volume of oil bath: 30L
10.Dimension: 550mm×800mm×1000mm
11.Net weight: About 45Kg

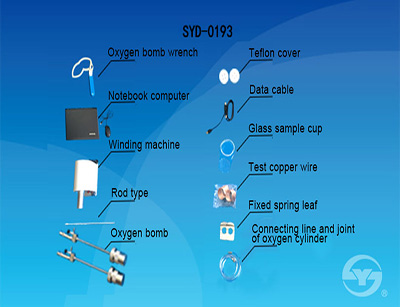

I,SYD-0193 Automatic Lubricating Oils Oxidation Stability Tester Accessories and Documents List
No. Name Unit Qty Memo
1 SYD-0193 Automatic Lubricating Oils Oxidation Stability Tester Set 1
2 Notebook computer Set 1
3 Oxygen bomb assembly Set 2
4 Glass sample cup Piece 4
5 PTFE cover Piece 2
6 Oxygen bomb sealing ring Piece 4
7 Test copper wire (diameter 1.63mm, made of Φ47 × 21 ring ring copper ring 2)

Piece 6
8 Oxygen bomb wrench Piece 1
9 Connecting line and joint of oxygen cylinder

Piece 1
10 USB connection Piece 1
11 Rod type mercury thermometer 130 ℃ ~ 150 ℃, scale division 0.1 ℃

Piece 1
12 Fixed spring leaf (on the PTFE cover) Piece 2
13 Winding machine Set 1
14 Fuse
(20A/500V Φ10×38)
Piece 2
15 Operation manual  Piece 1
16 Quality certificate Piece 1
17 Product warranty card Piece 1




II,SYD-0193 Automatic Lubricating Oils Oxidation Stability Tester's Reagent and Auxiliary Equipments


No. Name Specification Quantity Memo
1 Silicone oil Flash point above 200℃ 30L 0193B no need preparation
2 Miscella 2# or 3# 500ml 1 bottle for cleaning
3 Acetone  Analytical pure 500ml 1 bottle
4 Isopropanol Analytical pure 500ml 1 bottle
5 Normal heptane Analytical pure 500ml 1 bottle
6 Potassium hydroxide Analytical pure 500g 1 bottle
7 Distilled water 2 grade Less
8 Silicon carbide paper Particle size 100# 5 piece
9 Oxygen Purity 99.5% 1 bottle With reducing valve
10 Silicone grease   1 box

Notes:
1、The reagent and equipments for installing the instrument are supplied by end-users themselves.
2、The usage,management and saving of poisonous and harmful reagent,pls operate according to the relative principle.
3、PLS read the operation manual and industry standard before using the instrument.
