Full Auto Thermo gravimetric Analyzer

Technical Features: 1. Widescreen touch structure of industrial level display information is rich including the set temperature sample temperature oxygen flow rate nitrogen flow thermogravimetric signal all kinds of switch state the...

Standard: model: TGA-TC1550 E-mail: robin@pro-trueview.com

Technical Features:
1.  Widescreen touch structure of industrial level, display information is rich, including the set temperature, sample temperature, oxygen flow rate, nitrogen flow, thermogravimetric signal, all kinds of switch state, the flow rate to zero.
2. USB communication interface, strong commonality, reliable communication don't interrupt, support the restore
3. Furnace body structure is compact, arbitrary adjustable cooling rate.

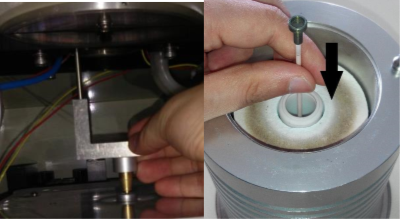

4. Improved the installation process, all adopt mechanical fixed way, the sample support bar flexible replaceable, convenient different customers' needs.
5.  Two way air flow control, switching speed, stable time is short.
6.  With standard sample, convenient customer constant temperature correction coefficient.
7.  The software adaptive resolution computer screen, the software automatically according to the computer display screen size to adjust the curve. Support notebooks, desktops; Support the Win2000, XP, VISTA, Windows 7 operating system.
8. Support user programming procedures, to achieve automatic measurement step. Software provides dozens of instructions,the user can according to your own measurement steps, and combined the instruction, and save. Complex operation is simplified into a key operation.




Technical parameters

Temperature range At room temperature to 1550 ℃
The temperature resolution 0.1℃
Temperature fluctuations ±0.1℃
Heating rate 0.1~80℃/minAny optional
Temperature control mode PIDTemperature control
Balance measurement range 10g
Thermogravimetric resolution 0.01mg
Constant temperature time 0~300min
Set arbitrary
Atmosphere control Nitrogen, oxygen, two lines of gas control
The power supply AC220V 50 Hz or 60 H Or custom




Examples of application
Thermogravimetric analysis (TG, TGA) is in the process of heating and constant temperature or temperature, observe the quality of the samples, along with the change of temperature or time objective is to study the thermal stability of materials and components. Widely used in plastics, rubber, coatings, pharmaceuticals, catalysts, inorganic materials,metal materials and composite materials in various fields of research and development, process optimization and quality monitoring. Measurement and study the following characteristics: thermal stability, decomposition, adsorption and desorption, oxidation and reduction, a quantitative analysis of ingredients, additives and fillers, moisture and volatile matter and reaction kinetics.

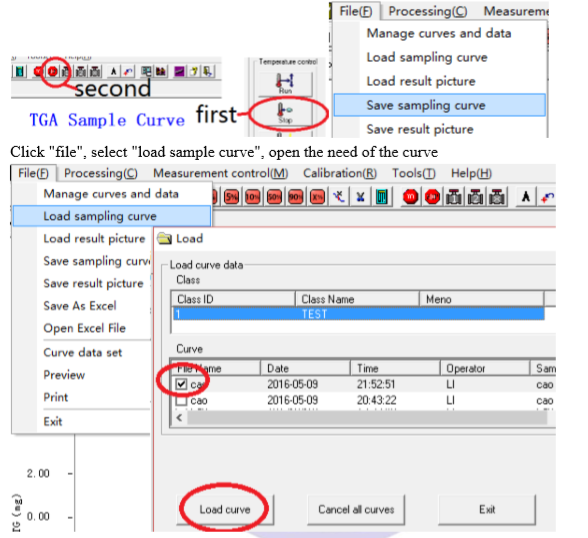

Software Interface
