Characteristics:

1. Adopt microcomputer controlling process

2. Automatically control distills, add water, control water level and cut off water supply

3. Various security protections: digestive system security device, steam generator water shortage alarm, water level detection fault alarm

4. Instrument shell adopts specially made plastic spray steel; working area adopts ABS anticorrosive board. Avoid chemical reagent corrosion and mechanical surface damage, acid proof and alkali proof.

5. Once detected fault, controlling system will power off automatically

6. Adopt tap water source, wide adaptability, and requirement for test is low.

Technical parameters:

Measuring varieties: grain, feed, food, dairy products, drink, soil, medicine, precipitate, chemicals and so on

Working mode: semi-automatic

Water-in mode: tap water and distilled water

Sample quantity: Solid: 0.20g-2.00g,

                               Semisolid: 2.00g-5.00g

                                Liquid: 10.00ml-25.00ml

Measuring range: 0.1mgN-200mgN (mg nitrogen)

Recovery rate: ≥99% (relative error, including digestive process)

Distillation speed: 5-15 min/sample (according to sample amount)

Cooling water consumption: 3L/min

Repetition rate: relative standard deviation <±1%

Power: AV 220V/50Hz, 1000W

Water supply: water pressure >1.5MPa

                          Water temperature<20°C

Shape size: 380*320*670mm

Weight: 20Kg

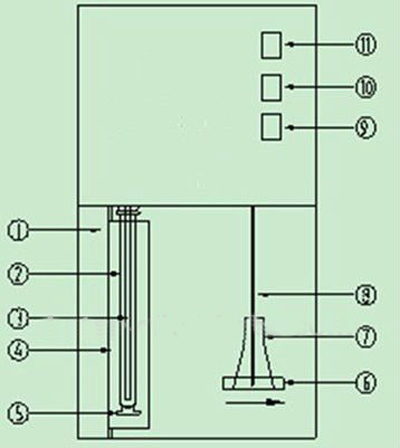

1.ABS panel

2.Digestion tube

3.Hard PTEE

4.Synthetic glass cover

5.Digestion tube tray

6.Erlenmeyer flask tray

7. Erlenmeyer flask

8. Ammonia gas

circumfluence glass nozzle

9.Distillation button

10.Alkali addition button

11.Power
