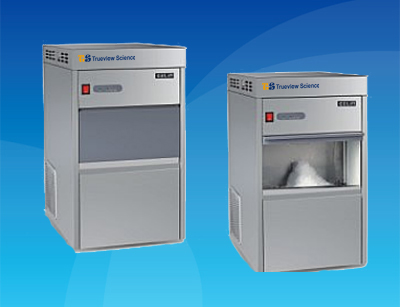

Automatic Flake Ice Maker（Snowflake）

(Low Temperature Instruments )

Features: 1,Compact design, Luxurious appearance. 2, Full automatic running and easy to use. 3, with front air intake and exhaust in back, others with air intake and exhaust in cabinet side. 4, A power-overloading protecting device, water s...

Standard: model: TS-SMS-20 E-mail: robin@pro-trueview.com

Features:

1,Compact design, Luxurious appearance.
2, Full automatic running and easy to use.
3, with front air intake and exhaust in back, others with air intake and exhaust in cabinet side.
4, A power-overloading protecting device, water shortage auto-detecting
system and ice storage full control device.
5, High efficiency CFC free compressor, economical and low energy consumption.


Model TS-SMS-20 TS-SMS-40 TS-SMS-50 TS-SMS-85 TS-SMS-100 TS-SMS-130
Capacity(kg)/24h 20 40 50 85 100 130
Ice storage(kg) 10 15 15 25 25 25
water consumption(L/H) ≤0.8 ≤1.6 ≤2.0 ≤3.5 ≤4.1 ≤5.4
Condensation wind cooling wind cooling wind cooling wind cooling wind cooling wind cooling
Unit dimension(mm) 300X493X547 380×543×712 380X543X722 548X611X883 548X611X883 635X611X945
Packing dimension(mm) 377×571×595 457×621×760 457×621×770 625×690×932 625×690×932 712×690×994
NW(kg) 32 40 40 57 58 70
GW(kg) 36 45 45 62 64 76
Input Power(W) 180 280 280 420 420 685
Refrigerant R134a R134a R134a R134a R134a R134a
