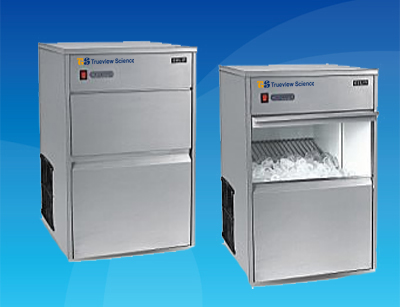

Automatic Ice Maker Series (Bullet Ice)

(Low Temperature Instruments )

Features: 1,Compact design, Luxurious appearance. 2. Full automatic running and easy to use. 3, IM-25A with front air intake and exhaust in back, others with air intake and exhaust in cabinet side. 4,A power-overloading protecting device, w...

Standard: model: TS-BIM-25 E-mail: robin@pro-trueview.com

Features:

1,Compact design, Luxurious appearance.
2. Full automatic running and easy to use.
3, IM-25A with front air intake and exhaust in back, others with air intake and exhaust in cabinet side.
4,A power-overloading protecting device, water shortage auto-detecting
system and ice storage full control device.
5,High efficiency CFC free compressor, economical and low energy consumption.

Technical Parameters:

Model TS-BIM-25 TS-BIM-50 TS-BIM-80 TS-BIM-100 TS-BIM-120
Capacity(kg)/24h 25 50 80 100 120
Ice storage(kg) 6 13 16 55 55
Unit dimension(mm) 380×543×662 548×611×833 635×611×895 680×611×1050 680×611×1050
Packing dimension(mm) 457×621×710 625×690×882 712×690×944 755×690×1100 755×690×1100
Net weight(kg) 30 47 58 70 72
Loading quantity(20'HQ) 135 54 62 62 62
Loading quantity(40'HQ ) 285 171 171 171 171
Foaming PU(HCFC-141b) PU(HCFC-141b) PU(HCFC-141b) PU(HCFC-141b) PU(HCFC-141b)
Price(USD)
