Description :

Control System:

Microprocessor-based temperature controller, -110℃~-152℃ / -90℃~-135℃/-40℃~-105℃ adjustable, Digital temperature display.

Audible and visual alarm: High or low temperature alarm, Power failure alarm,  Low battery alarm, Door open alarm, Filter blocking alarm, system failure alarm.

Keyboard lock and password protected configuration page, Delayed start and safe stop interval between restart and

being terminated.

With temperature recorder, 72 hour back up battery for recorder and controller work.

Structure Design:

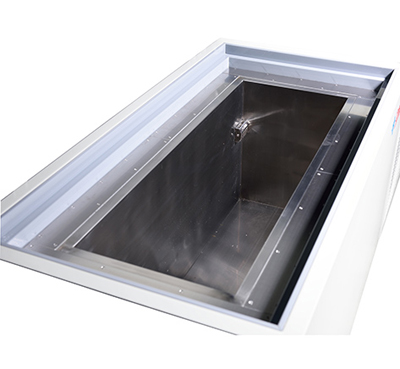

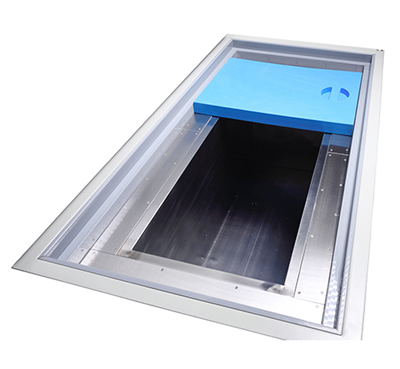

Stainless steel interior, outer is painted steel panel, 4units Casters for easy handing.

Rotatable assistant door handle,Top door with key lock.

Two-times foaming technology, 155mm extra thickness foaming insulation.

Optional: Chart recorder, CO2 back up system, storage racks/boxes, Remote alarm system.

Refrigeration System:

Imported famous brand compressor, Quick freezing functions, with lower noise.

Unique refrigeration circulation and unipolar compressor oil-lubricated technology.

Use China Patent technology of mixture refrigerant. For specially Single stage refrigeration.

VIP board install, for good heat preservation.

Parameters:

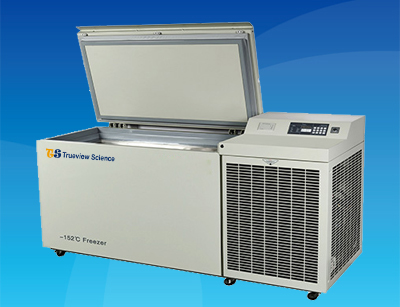

Model: TS-UL258

Capacity(L): 258

Input power: 9200W

External size (D * W * H) mm: 2085x890x1009

Inside size (D * W * H) mm: 1140x410x552

Storage temperature (℃): - 110℃ ~ - 152 ℃

Weight (N.t): 420KG
Applications:
Apply to blood stations, hospitals, health and epidemic prevention system, scientific research institutes, biological engineering, laboratory in colleges and universities, military industrial enterprises, etc.
