Description:

Control System:

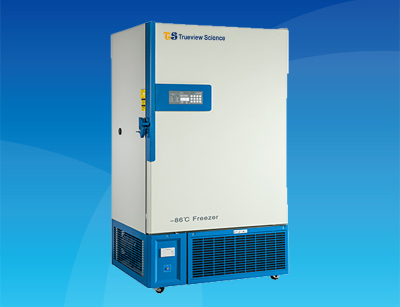

7inch touch screen controller,  -40℃~-86℃adjustable, controlling precision is 1℃.

Keyboard lock and password protected configuration page, Delayed start and safe stop interval between restart and being terminated.

Audible and visual alarm: High or low temperature alarm, Power failure alarm, Low battery alarm, Door open alarm, Filter blocking alarm, system failure alarm.

Structure Design:

Stainless steel interior, Outer is painted steel panel, 4units Casters for easy handing

Front opening lockable door with newingenioushandle, easy open and close.

Vacuum release port

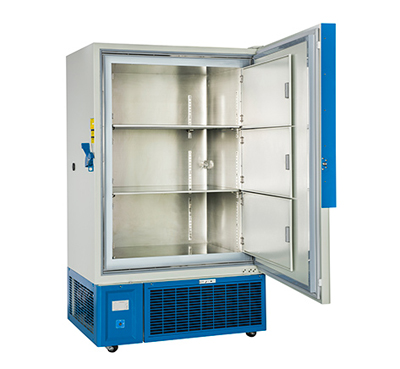

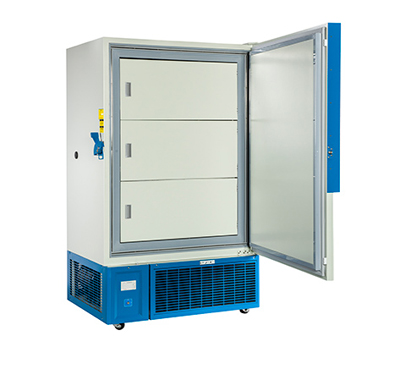

Adjustable stainless steel shelves with inner insulation doors, double silicon gasket seal.

Two-times foaming technology. 120mm foaming insulation , with VIP insulation board.

With USB store functions.

Optional: Chart recorder, CO2 back up system, storage racks/boxes, Remote alarm system.

Refrigeration System:

Imported famous brand compressor, Lower the noise and reduce the power consumption

Fan electromotor with internationally famous of Germany EBM

China Patent technology of mixture refrigerant, specially Single stage refrigeration design

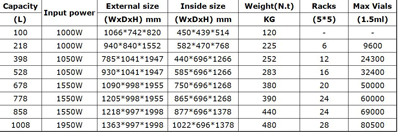

Parameters :

Model: TS-UL828

Installation dimensions (deep * width * height) mm: 996 * 1230 * 1230

The total volume (l) : 828

Storage temperature (℃) : - 10 ℃ ~ 86 ℃

Weight (kg) : 420

Applications:

Apply to blood stations, hospitals, health and epidemic prevention system, scientific research institutes, biological engineering, laboratory in colleges and universities, military industrial enterprises, etc.
