Description:

Control System:

Double microprocessor-based temperature controller,  -40℃~-86℃ can be set freely and control each room separately , controlling precision is 1℃, Digital temperature display.

Keyboard lock and password protected configuration page, Delayed start and safe stop interval between restart and being terminated.

Audible and visual alarm: High or low temperature alarm, Power failure alarm, Low battery alarm, Door open alarm, Filter blocking alarm, system failure alarm.

Structure Design:

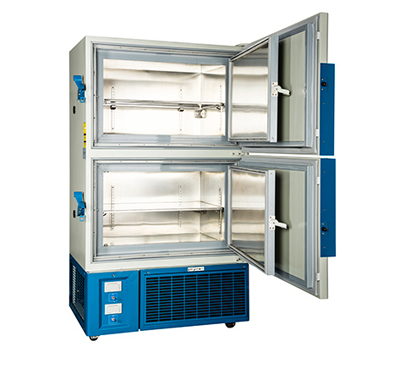

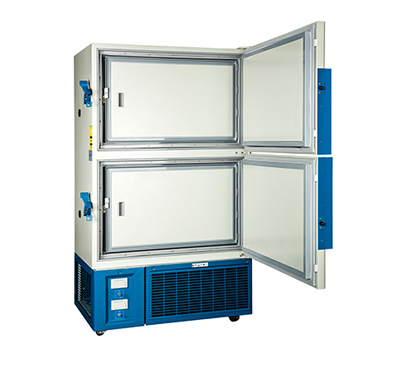

Double doors for up and down rooms, Inside chamber with inner insulation door, and double silicon gasket seal.

Stainless steel interior, Outer is painted steel panel, 4units Casters for easy handing.

Front opening lockable door with full height handle, with Vacuum release port.

Two-times foaming technology. 130mm foaming insulation, with VIP insulation board.

With temperature recorder, record 7days data. 72 hour back up battery for recorder and controller work.

Refrigeration System:

Double cooling system to support different rooms separately and independently. If one system damage, another one can work normally.

Imported famous compressor（2sets） and EBM fan motor.

China Patent technology of mixture refrigerant, specially Single stage refrigeration design.

Parameters:

Model: TS-UL508

Capacity(L): 508

Input power: 1050W*2

External size (D * W * H) mm: 1200x897x1999

Inside size (D * W * H) mm: Up:880x504x570; Down: 880x504x514

Storage temperature (℃): - 40℃ ~ -86 ℃

Weight (N.t): 375KG

Racks(5*5): 22

Max Vials(1.5ml): 26400

Applications:

Apply to blood stations, hospitals, health and epidemic prevention system, scientific research institutes, biological engineering, laboratory in colleges and universities, military industrial enterprises, etc.
