Description:

Control System:

Microprocessor-based temperature controller. Temperature range 4±1°C, with temperature printer standard.

Large screen LCD display of temperature, display accuracy of +/- 0.1°C.

Automatic temperature control, Defrost automatic.

Audible and visual alarm: High or low temperature alarm, Door ajar alarm, system failure alarm, power failure alarm, low battery alarm.

Structure Design:

Upright type, Exterior made from painted steel plate,Inside is stainless steel. Caster are mounted under the bottom.

Three-layer glass door with heater around to prevent ice leak, and lockable.

Interior fluorescent light with switch control.

Inner is shelves (wire plastics).3units for XC-88L, 4units for XC-240/268L, 5units for XC-280/358L, 6units for XC-588L, 8units for XC-950L, 12unit drawer for XC-1380L.

With Temperature recorder for 7days data record.

Optional chart recorder, blood storage basket.

Refrigeration System:

Forced air circulation system.

International Famous compressor and Germany EBM fan motors.

The high-effective air-cooled condenser and the fin-type evaporator.

Parameters:

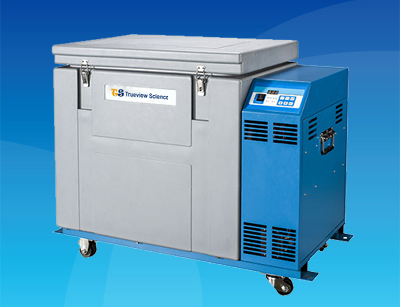

Model: TS-BB90(blood transport box)

Capacity(L): 90liters, can load 50 bags 450ml blood

Temperature: 4℃ or 22℃

Ambinet temp: - 5℃ ~ 43 ℃

Working Voltage: DC12/24V/AC100-240V 50/60HZ Automatic Selection

Compressor: Danfoss compressor

Alarm fucntions: High/low temperature alarm, visual and audible

Material: Whole LLDPE

Insulation: 50mm

Outer size: 1000*565*862mm(LxWxH)

Inside size: 494*365*540mm(LxWxH)

Packling size: 1135*636*1069mm(LxWxH)

Weight: 73/90KG

Applications:

Car blood refrigerator for central blood bank, blood bank, hospital blood, blood and other fresh blood preservation.
