Description:

Control System:

Microprocessor-based temperature controller. Temperature range 4±1°C, with temperature printer standard.

Large screen LCD display of temperature, display accuracy of +/- 0.1°C.

Automatic temperature control, Defrost automatic.

Audible and visual alarm: High or low temperature alarm, Door ajar alarm, system failure alarm, power failure alarm, low battery alarm.

Structure Design:

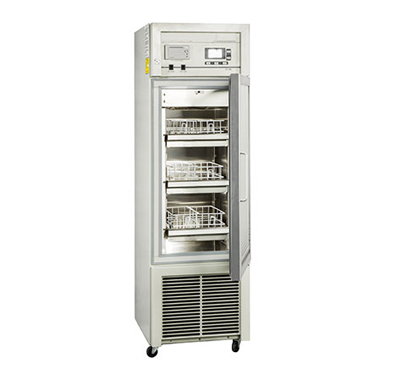

Upright type, Exterior made from painted steel plate,Inside is stainless steel. Caster are mounted under the bottom.

Three-layer glass door with heater around to prevent ice leak, and lockable.

Interior fluorescent light with switch control.

Inner is shelves (wire plastics).3units for XC-88L, 4units for XC-240/268L, 5units for XC-280/358L, 6units for XC-588L, 8units for XC-950L, 12unit drawer for XC-1380L.

With Temperature recorder for 7days data record.

Optional chart recorder, blood storage basket.

Refrigeration System:

Forced air circulation system.

International Famous compressor and Germany EBM fan motors.

The high-effective air-cooled condenser and the fin-type evaporator.

Parameters:

Model: TS-BB88

Capacity(L): 88

Input power: 410W

External size (D * W * H) mm: 450x500x1515

Inside size (D * W * H) mm: 343x402x783

Temperature range  (℃): 4±1°C

Blood capacity(450ml/bag): 50bags

Weight (N.t): 100KG
