Technical Specification:

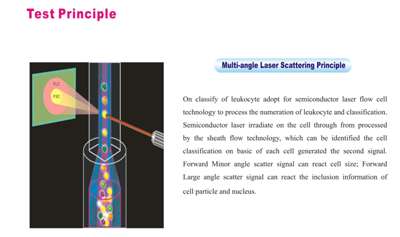

Principle: Multi-angle Laser Scattering for WBC(DIFF), impedance resistance for WBC(BASO)、RBC、PLT、Cyanide-free photometry for hemoglobin
Parameter:28 Parameters, one scattergram, three histograms
Sample Volume: 40μL
Two testing mode for option: sample close whole blood, capillary blood
Throughput:60sample/hour

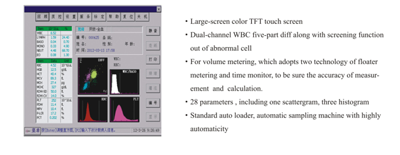

Display:10.4inch color TFT touch screen
Operation interface: English version, use-defined report
Data Storage: With a storage capacity of 35,000 patient’s result (including scattergrams and histogram)
Main Machine Size: 403*460*571
Weight: 30KG
Power: 220V, 50HZ (optional of wide power supply)
Optional Accessories: External barcode reader
Original manufacturer matching reagent
Four Reagent:
Diluent
Lyse(D)
Lyse(B)
Cleaner



Performance Characteristic:

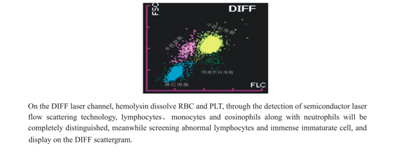

DIFF Laser Channel:

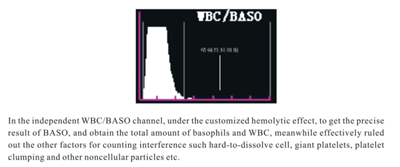

WBC/BASO Channel:

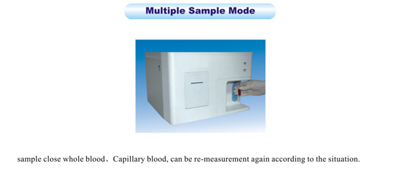

Multiple Sample Mode:
