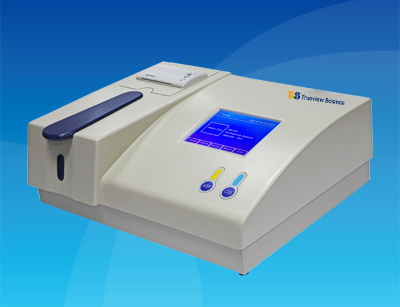

Semi Auto Biochemistry Analyzer
Main features: * Large LCD display screen provided,external mouse action and standard keyboard * Micro dimension flow cell ,precision temperature control and low carry over * Quality control feature with data statistics and searching * Real...
Main features:
* Large LCD display screen provided,external mouse action and standard keyboard
* Micro dimension flow cell ,precision temperature control and low carry over
* Quality control feature with data statistics and searching
* Realtime reaction curve displayed, abnormity detected in time
* Large memory to store 200 test parameters , 20000 sample results
* Multi-forms in result output including patient comprehensive report
* Intercommunication with RS-232, optional Lead-Workstation biochemistry analyzing software
* Particular reproducibility performance test, easy to know the instruments status
Application Tests:
| Net Weight： | 7 kg |
| Gross Weight: | 9 kg |
| Instrument Size: | 430mm（L）×330mm（W）×140mm（H） |
| Package Dimension： | 350mm×450mm×590mm |
| Power Supply： | AC 100V~240V, 50/60 Hz |
| Fuses： | 2-φ5×20 BGXP1.5A 250V |
| Flow cell | 32 uL quartz flow cell |
| Work environment： |
Temperature: +5 ~ +40℃；Relative humidity: 20%~80%； Atmospheric pressure：700~1060hpa； |
| Storage temperature: | -20℃ ~ 50℃ |
| Lamp: | Tungsten Halogen Lamp, OSRAM 64225 6V/10W |
| Reading range: | 0.000~4.500A |
| Warm-up time | 10 min |
| CPU： | ARM core CPU |
| Ports： | RS232 serial port、parallel printer port、USB port、PS/2 keyboard and mouse port |
| Display: | 320×240 LCD |
| Input mode: | Touch Screen, Touch pen, external keyboard and mouse |
| Memory Capability: | 500 test items and up to 10,000 test data |
| Printer | Built-in Thermal Printer,optional external printer |
| Wavelength Range(nm) | 340,405,510,546,578,630,690（add up to 2 filters in the range of 300～850） |
| Analysis means: | end-point, kinetic, fixed-time, nonlinear |
| Carry over | ≤ 1.0% |
| Stability: | ≤ 0.01 A |
| Absorbance Accuracy | ≤±0.005A or ±1% |
| Resolution | ±0.001Abs |
| Minimum volume | 200μL ~3000 μL |
| Halfband width | ≤ 6 nm |
Remark:
MR-T00B and MR-T00BN methods：Single point calibration；Broken line regression (point-to-point)；linear regression；index regression；the logarithm regression；the double logarithm regression；Log-logit；power regression
MR-T00BS methods：Single point regression mode；Multi point regression；Linear regression；Exponential Regression；Logarithm Regression；Dual Logarithm Regression；log-logit Regression；Polynomial Regression
MR-T00B Elisa Reader is 10.4 inch color display screem ,windows operating system .
MR-T00BS Elisa Reader is 5.7 inch LCD display screen, sold best and performance stability .
MRT00BNElisa Reader is no display screen ,need connect with computer to operate, we will provide free PC software .Can support windows 7,10 ,xp .
