Water Content Tester
Summary This instrument is made and designed as per GB/T260 Standard Test Method for Water in Petroleum Products and ASTM D95 Standard Test Method for Water in Petroleum Products and Bituminous Materials by Distillation. This instrument is...
Summary
This instrument is made and designed as per GB/T260 Standard Test Method for Water in Petroleum Products and ASTM D95 Standard Test Method for Water in Petroleum Products and Bituminous Materials by Distillation. This instrument is suitable to determine the water content of petroleum products according to the test method specified in GB/T260. It is also suitable to determine the water content of lubricating grease according to the test method specified in GB/T 512 Test Method for Water Content of Lubricating Grease.
I. Main technical features
1. The instrument is designed totally meeting the requirements of GB/T260.
2. The gripper of instrument is designed reasonably. The installation and dismantlement of condenser are convenient.
3. The heating power is continuously adjustable. The voltmeter displays the power intuitionally. The temperature control is reasonable.
II. Main technical specifications
1. Power supply： AC(220±10%)V，50Hz
2. Heating power of electric furnace： 1000W
3. Heating control： Can be continuously adjusted by a silicon knob
4. Ambient temperature： ≤35℃
5. Relative humidity： ≤85%
6. Maximum power consumption： 1100W

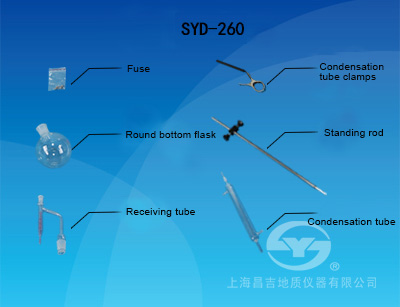

I、SYD-260 Water Content Tester Accessories and Documents List
| No. | Name | Unit | Qty | Memo |
| 1 | Main unit | Set | 1 | |
| 2 | Standing rod | Piece | 1 | |
| 3 | Clamps for condensation tube | Pair | 1 | |
| 4 | Condensation tube | Piece | 1 | |
| 5 | Receiving tube | Piece | 1 | |
| 6 | Round bottom flask | Piece | 1 | |
| 7 | Fuse 5A（Ф5×20） | Piece | 2 | |
| 8 | Rubber hose（Ф22×3）——0.2 meter | Piece | 1 | |
| 9 | Silicone tube（Ф12×2）——5 meter | Piece | 1 | Select according to the demand |
| 10 | Inlet pipe connection head | Piece | 1 | |
| 11 | Operation manual | Piece | 1 | |
| 12 | Quality certificate | Piece | 1 | |
| 13 | Product Warranty Card | Piece | 1 |
II、SYD-260 Water Content Tester's Reagent and Auxiliary Equipments
| No. | Memo | |||
| 1 | Xylene | 500ml | 3 bottles | |
| 2 | Pumice stone | 1 box |
1、The reagent and equipments for installing the instrument are supplied by end-users themselves.
2、The usagemanagement and saving of poisonous and harmful reagentpls operate according to the relative principle.
3、PLS read the operation manual and industry standard before using the instrument.
