Summary
This instrument is designed and made as per the industrial standard of People’s Republic of China SY/T5651 Technical Condition of Petroleum Products Kinematic Viscosity Tester. It is suitable to determine kinematic viscosity of liquid petroleum products(Newtonian fluids)at a constant temperature as per the stipulation in the national standard of People’s Republic of China GB/T265 Petroleum products-Determination of kinematic viscosity and calculation of dynamic viscosity.

I. Main technical features
1. This instrument adopts a type of all-in-one machine.The control switch adopts light-touch mode.It has the features of
     novel design,compact structure and beautiful appearance.
2. This instrument adopts LCD temperature controller.The temperature control is rapid.The response is fast.The
     overshoot is small.The temperature control accuracy can reach ±0.1℃.
3. This instrument adopts hard glass bath and electric stirring device.Easy to observe the sample.The temperature in
     water bath is uniform.

II. Main technical specifications
1. Power supply：   AC(220±10%)V，50Hz
2. Heating device：  Electric heating，power 600W
3. Stirring motor：   6W, 1200RPM
4. Temperature control range：  Ambient to 100℃
5. Temperature control accuracy：  ±0.1℃
6. Temperature sensor：  RTD, Pt100
7. Ambient temperature：  Room temperature～35℃
8. Relative humidity：  ≤85％
9. Capillary viscometer tubes (Pinkevitch viscometer)：
     7 pieces in total, inner diameter for each: 0.6mm, 0.8mm, 1.0mm, 1.2mm, 1.5mm, 2.0mm, 2.5mm
10. Dimension： 500mm×310mm×500mm

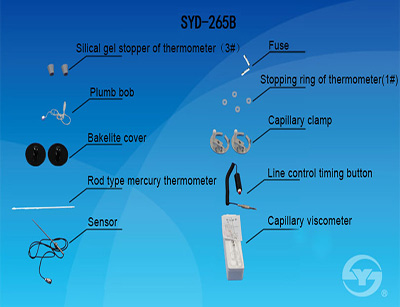

ISYD-265B Kinematic Viscometer Accessories and Documents List

No.	Name	Unit	Qty	Memo
1	SYD-265B Kinematic Viscometer	Set	1
2	Capillary viscometer	Piece	7
3	Rod type mercury thermometer （0~50℃、50~100℃，scale mark 0.1℃）	Piece	Each 1
4	Temperature sensor	Piece	1
5	Plumb bob	Set	1
6	Silical gel stopper of thermometer（3#）	Piece	2
7	Bakelite cover	Piece	2
8	Capillary clamp	Piece	2
9	Fuse 6A（Ф5×20）	Piece	2
10	Stopping ring of thermometer(1#)	Piece	4
11	Heat insulation mat	Piece	1
12	Line control timing button	Piece	1
13	Ear whashing bulb	Piece	1
14	Operation manual	Piece	1
15	Quality certificate	Piece	1
16	Product warranty card	Piece	1

IISYD-265B Kinematic Viscometer's Reagent and Auxiliary Equipments

No.	Name	Specification	Quantity	Memo
1	Glycerol or mineral oils		20L	The test temperature above 80℃
2	Petroleum ether 60-90℃	Analytical pure 500ml	1 bottle
3	Distilled water	3 grade	Some

Notes：
1、The reagent and equipments for installing the instrument are supplied by end-users themselves.
2、The usagemanagement and saving of poisonous and harmful reagentpls operate according to the relative principle.
3、PLS read the operation manual and industry standard before using the instrument.
