Automatic Kinematic Viscometer

Summary The instrument is designed and made as per national standard of Peoples Republic of China GB/T 265 and ASTM D445 Petroleum products-Determination of kinematic viscosity and calculation of dynamic viscosity and GB/T1632-93 Test Metho...

Standard: ASTM -- D445 model: SYD-265H-1 E-mail: robin@pro-trueview.com

Summary
  The instrument is designed and made as per national standard of People’s Republic of China GB/T 265 and ASTM D445 Petroleum products-Determination of kinematic viscosity and calculation of dynamic viscosity and GB/T1632-93 Test Methods for Viscosity Number and Limiting Viscosity Number of Polymers in Dilute Solution. It is suitable to determine Kinematic viscosity, viscosity number, and limiting viscosity number of oils and polymer in dilute solution. It has been widely used in the field of pharmaceutics, petroleum, chemistry, scientific research, and metrology.

I. Main technical features
1. This instrument adopts micro-computer as the central control component. It achieves prompt type operation.
2. This instrument can intelligently control the whole procedure of the test. It achieves the full automation of keeping
     temperature constant, time detection, viscosity calculation, viscometer tube cleaning and drying, and automatically print
     out test result.
3. This instrument has ability of fault identification and processing. It is convenient for user to analyze and judge the
     condition of instrument.

II. Main technical specifications
1,Temperature sensor:Pt1000
2,Temperature range: 15ºC~120ºC
3,Temperature resolution:0.001ºC
4,Temperature control accuracy: ±0.04ºC
5,Timing accuracy:±0.1s,resolution ratio 0.01s
6,Sample quantity:2 pcs
7,Usage environment:temperature 15ºC~35ºC,humidity less 85%
8,Power supply:AC220V ±10%  50Hz±1Hz
9,Total consumption:≤2100W
10,Outline dimension:550mm×600mm×1350mm(L×W×H)
11,Net weight: 125kg

Note:The instrument with standard configuration 4 pces Ubbelohde capillary tubes, The inner diameters for each is 0.8mm,1.0mm,1.2mm and 1.5mm,If the user need other kinds of viscometer,pls inform us for customizing.

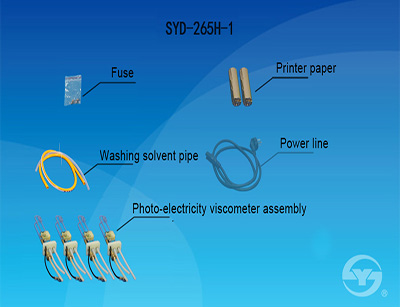

ISYD-265H-1 Automatic Kinematic Viscometer Accessories and Documents List

No. Name Unit Qty Memo
1 SYD-265H-1 Automatic Kinematic Viscometer Set 1
2 Vacuum suction device Set 2
3 Photo-electricity viscometer assembly
(Inner diamter 0.8㎜、1.0㎜、1.2㎜、1.5㎜ each 1 piece)
Piece 4
4 Washing solvent pipe Piece 2
5 Power line(250V10A) Piece 1
6 Fuse(φ5×20、10A) Piece 2
7 Printer paper Roll 2
8 Operation manual Piece 1
9 Quality certificate Piece 1
10 Product warranty card Piece 1



IISYD-265H-1 Automatic Kinematic Viscometer's Reagent and Auxiliary Equipments

No. Name Specification Quantity Memo
1 Transformer oil 25# or 40# 20L
2 Petroleum ether 60-90℃ Analytical pure 500ml 1 bottle
3 Distilled water 3 grade Some


Notes
1、The reagent and equipments for installing the instrument are supplied by end-users themselves.
2、The usagemanagement and saving of poisonous and harmful reagentpls operate according to the relative principle.
3、PLS read the operation manual and industry standard before using the instrument.
