Summary
  This instrument is newly designed and made as per national standard of People's Republic of China GB/T510 Standard Test Method for Solidifying Point of Petroleum Oils.It is suitable to determine solidifying point of petroleum products. It is widely used in oil exploitation companies, petroleum manufacturers, petroleum users, colleges and scientific research institutes.

I. Main technical features
1. The material of workbench is stainless steel. It has two cooling baths in one chamber. The two cooling baths are the same     in temperature.
2. It adopts special technology. It is no need to use cooling liquid in cold chamber. The cooling rate is fast and efficiency is
    high. The temperature in cooling baths is uniform and it can reach -70℃. The precision is ±0.5℃.
3. The instrument adopts bench structure. The design is simple and easy to use. Operator can do solidifying point test as
    long as buying this equipment.

II. Main technical specifications
1. Power supply： AC（220±10%）, 50Hz
2. Working chamber： Two test baths in one chamber. The temperatures are the same.
3. Temperature range： Ambient to -70℃
4. Temperature control accuracy： ±0.5℃
5. Refrigeration： New-type refrigeration compressor
6. Ambient temperature： ≤30℃
7. Relative humidity： ≤85%
8. Maximum power consumption： 1000W
9. Dimension： 620mm×460mm×355mm

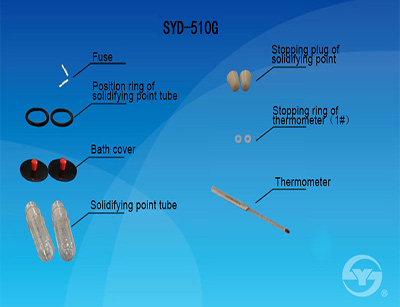

ISYD-510G Solidifying Point Tester Accessories and Documents List

No.	Name	Unit	Qty	Memo
1	SYD-510G Solidifying Point Tester	Set	1
2	Thermometer（-80～60）℃  scale mark 1℃	Piece	1
3	Stopping ring of thermometer（1#）	Piece	2
4	Fuse 10A（Ф5×20）	Piece	2
5	Bath cover	Piece	2
6	Operation manual	Piece	1
7	Temperature control device usage manual	Piece	1
8	Quality certificate	Piece	1
9	Product warranty card	Piece	1

IISYD-510G Solidifying Point Tester's Reagent and Auxiliary Equipments

No.	Name	Specification	Quantity	Memo
1	Absolute ethyl alcohol	Analytical pure 500ml	3 bottles

Notes：
1、The reagent and equipments for installing the instrument are supplied by end-users themselves.
2、The usagemanagement and saving of poisonous and harmful reagentpls operate according to the relative principle.
3、PLS read the operation manual and industry standard before using the instrument.
