VIS Spectrophotometer

Product Description I. Adopting128 * 64 digit dot matrix liquid crystal display, can directly display standard curve and test data that can be stored by the host, and with an optional printer; II. USB data output interface; III. Can establi...

Standard: model: TS-V1710 E-mail: robin@pro-trueview.com

Product Description
I. Adopting128 * 64 digit dot matrix liquid crystal display, can directly display standard curve and test data that can be stored by the host, and with an optional printer;
II. USB data output interface;
III. Can establish standard curve directly, and can conduct related test with the standard curve, continuously test and store 200 sets of data, and can store 100 standard curves;
IV. Unique optical system, 1200 pieces/ mm grating and imported receiver to ensure its sound performance;
V. Automatic wavelength calibration and setting;
VI. Large sample rooms that can accommodate 5-100mm cuvettes of all kinds;
VII. Membrane keys, simple and convenient to operate.

Features
It adopts 128*64-bit dot matrix LCD display which can directly display standard curve and tes data and the host can store test data, and pint is optiional for the instrument.

Model: TS-V1710
Optical system: Czerny-turner CT grating monochromator, 1200/mm
Wavelength range: 320-1000 nm
Wavelength accuracy: +/- 1 nm
Wavelength repeatability: 0.5nm
Measurement range: 0-200%T,-03A-3A
Photometric accuracy: 0.5%T
Photometric repeatability: 0.2%T
Spectral bandwidth: 4 nm
Zeroing: Automatic
Stray light: <= 0.05%T @360 nm
Stability: +/- 0.002 A/h @500 nm)
Display modes: 128*64 LCD
Basic Measurement: T,A,C
Data output (print): RS232C/USB
Light source: Tungsten Lamp ( 6V10W )
Operating voltage: 220V/110VAC,50-60Hz

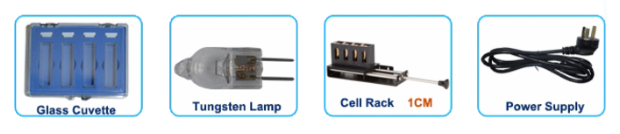

Product Parts Accessories
