Portable pH Meter for Water and Wastewater Treatment
Economy portable pH meter, 3 points calibration, Automatic Temperature Compensation, setup menu contains 7 optional parameters. The meter is suitable for measuring the pH and mV of samples. Accuracy: 0.01pH. Features: Easy-to-use portable pH...
Economy portable pH meter, 3 points calibration, Automatic Temperature Compensation, setup menu contains 7 optional parameters. The meter is suitable for measuring the pH and mV of samples. Accuracy: 0.01pH.
Features:

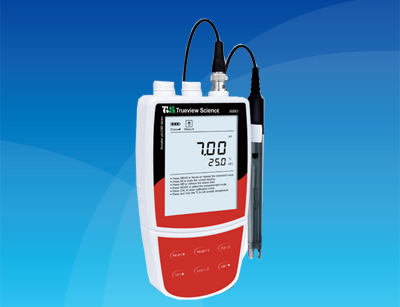

• Easy-to-use portable pH meter is equipped with a large LCD display.
• 1 to 3 points push-button calibration with auto-buffer recognition.
• Automatic electrode diagnosis with pH slope and offset display.
• Automatic Temperature Compensation provides accurate reading over the entire pH range.
• Auto-Hold feature senses and locks the measurement endpoint.
• Auto-Power Off effectively conserves battery life.
• Setup menu allows setting the 7 parameters, including the pH buffer group (USA/NIST),
number of calibration points, temperature unit, etc.
• Reset feature automatically resumes all settings back to factory default options.
• Expanded memory stores and recalls up to 100 data sets.
• Stored readings can be transferred into the computer by USB communication interface.
Applications:
• Water and wastewater treatment
• Environmental monitoring and ecological research
• Aquaculture and hydroponics
• Food processing
• Other industrial applications
Specifications:
|
Model |
TS-PT220 |
|
|
pH |
||
|
Range |
-2.00~20.00pH |
|
|
Accuracy |
±0.01pH |
|
|
Resolution |
0.01pH |
|
|
Calibration Points |
1 to 3 points |
|
|
pH Buffer Options |
USA (pH4.01/7.00/10.01) or NIST (pH4.01/6.86/9.18) |
|
|
mV |
||
|
Range |
-1999~1999mV |
|
|
Accuracy |
±1mV |
|
|
Resolution |
1mV |
|
|
Temperature |
||
|
Range |
0~105°C, 32~221°F |
|
|
Accuracy |
±0.5°C |
|
|
Resolution |
0.1°C |
|
|
Calibration Points |
1 point |
|
|
Temperature Units |
°C or °F |
|
|
General |
||
|
Temperature Compensation |
|
0~100°C, 32~212°F, Manual or Automatic |
|
Data Hold |
|
Manual or Automatic endpoint detection |
|
Power Off |
|
Manual or Automatic (30 minutes after last key pressed) |
|
Reset Function |
|
Yes |
|
Memory |
|
Stores up to 100 data sets |
|
Output |
|
USB communication interface |
|
Connector |
|
BNC |
|
Display |
|
LCD |
|
Power Requirements |
|
3×1.5V "AA" batteries |
|
Battery Life |
|
Approximately 150 hours (Turn off the backlit) |
|
Dimensions |
170(L)×85(W)×30(H)mm |
|
|
Weight |
300g |
|
