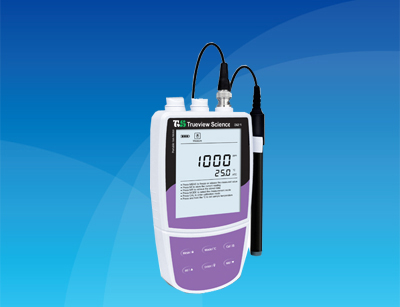

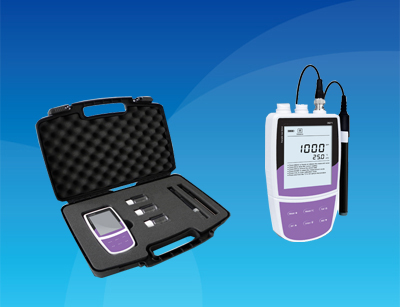

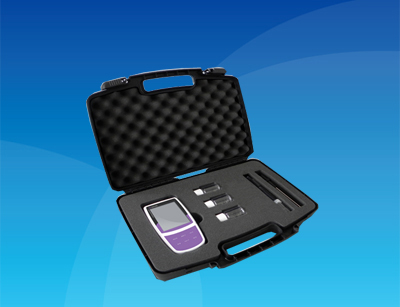

Portable Fluoride Ion Meter
Standard portable fluoride ion meter, suitable for outdoor applications. Accuracy: 0.5% F.S. Features: High-performance portable fluoride ion meter is equipped with a large backlit LCD display. 2 to 5 points push-button calibration from low...
Standard portable fluoride ion meter, suitable for outdoor applications. Accuracy: 0.5% F.S.
Features:
• High-performance portable fluoride ion meter is equipped with a large backlit LCD display.
• 2 to 5 points push-button calibration from low to high concentrations.
• Direct ion concentration readout simplifies the measurement process.
• Selectable concentration units, including the ppm, mg/L and mol/L.
• Automatic Temperature Compensation provides accurate reading over the entire range.
• Calibration Due Alarm prompts user to calibrate the meter regularly.
• Stability indicator shows when a measurement is recognized as stable.
• Auto-Hold feature senses and locks the measurement endpoint.
• mV measurement mode can be used for checking the electrode performance.
• Battery indicator shows the remaining battery capacity.
• Auto-Power Off effectively conserves battery life.
• Setup menu allows setting the 8 parameters, including the number of calibration points,
temperature unit, stability criteria, etc.
• Reset feature automatically resumes all settings back to factory default options.
• Expanded memory stores and recalls up to 500 data sets.
• Stored data can be transferred into computer by USB communication interface.
• Multi-mode power scheme (batteries, power adapter and USB port) ensures that use the
meter smoothly.
Specifications:
|
Model |
TS-IM321 |
|
|
Ion |
||
|
Range |
1×10-6M~Saturation, 0.02ppm~Saturation |
|
|
Accuracy |
±0.5% F.S |
|
|
Resolution |
0.001/0.01/0.1/1 |
|
|
Calibration Points |
2 to 5 points |
|
|
Calibration Solutions |
0.001/0.01/0.1/1/10/100/1000/10000ppm, mg/L, mol/L |
|
|
mV |
||
|
Range |
-1999.9~1999.9mV |
|
|
Accuracy |
±0.2mV |
|
|
Resolution |
0.1mV |
|
|
Temperature |
||
|
Range |
0~105°C, 32~221°F |
|
|
Accuracy |
±0.5°C |
|
|
Resolution |
0.1°C |
|
|
Calibration Points |
1 point |
|
|
Temperature Units |
°C or °F |
|
|
General |
||
|
Temperature Compensation |
0~100°C, 32~212°F, Manual or Automatic |
|
|
Data Hold |
|
Manual or Automatic endpoint detection |
|
Stability Criteria |
|
Low or High |
|
Calibration Due Alarm |
|
1 to 31 days |
|
Power Off |
|
Manual or Automatic (10, 20, 30 minutes) |
|
Reset Function |
|
Yes |
|
Memory |
|
Stores up to 500 data sets |
|
Output |
|
USB communication interface |
|
Connector |
|
BNC |
|
Display |
|
LCD |
|
Power Requirements |
3×1.5V "AA" batteries |
|
|
Battery Life |
Approximately 150 hours (Turn off the backlit) |
|
|
Dimensions |
170(L)×85(W)×30(H)mm |
|
|
Weight |
300g |
|
