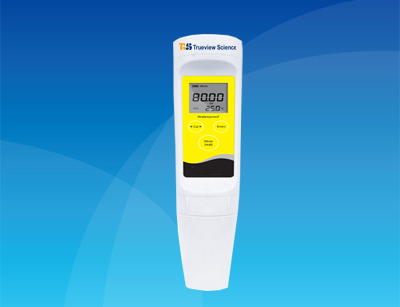

Pocket Salinity Tester

High-range pocket salinity tester, 1 to 3 points calibration, setup menu contains the 5 optional parameters. The meter is suitable for measuring the seawater and high concentration liquids. Accuracy: 1% F.S. Features: Multiparameter pocket s...

Standard: model: TS-ST20 E-mail: robin@pro-trueview.com

High-range pocket salinity tester, 1 to 3 points calibration, setup menu contains the 5 optional parameters. The meter is suitable for measuring the seawater and high concentration liquids. Accuracy: 1% F.S.

Features:

• Multiparameter pocket salinity tester contains the conductivity measurement mode.
• Platinum conductivity cell provides the fast and reliable measurement results.
• 1 to 3 points push-button calibration, automatically recognizes the calibration solutions.
• Automatic Temperature Compensation provides accurate reading over the entire range.
• Auto-Hold feature senses and locks the measurement endpoint.
• Battery indicator shows the remaining battery capacity.
• Auto-Power Off effectively conserves battery life.
• Setup menu allows setting the 5 parameters, including the number of calibration points,
  temperature unit, etc.
• Reset feature automatically resumes all settings back to factory default options.
• Replaceable electrode module reduces the maintenance and replacement cost.
• Waterproof feature to ensure complete protection in harsh environments.

Applications:

• Brines and aquaculture systems
• Aquariums (marine fish)
• Food processing
• Other industrial applications

Specifications:

Model



TS-ST20

   Salinity



   Range



0.00~80.00ppt

   Accuracy



±1% F.S

   Resolution



0.01

   Conductivity



   Range



100.0~2000µS/cm, 20.00, 200.0mS/cm

   Accuracy



±1% F.S

   Resolution



0.01/0.1/1

   Calibration Points



1 to 3 points

   Calibration Solutions



1413µS/cm, 12.88mS/cm, 111.8mS/cm

   Temperature



   Range



0~60°C, 32~140°F

   Accuracy



±1°C

   Resolution



0.1°C

   Calibration Points



1 point

   Measurement Units



°C or °F

   General



   Temperature Compensation



0~60°C, 32~140°F, Automatic

   Temperature Coefficient



2%/°C

   Compensation Modes



Linear

   Cell Constant



K=10

   Data Hold



Manual or Automatic endpoint detection

   Power Off



Manual or Automatic (8 minutes after last key pressed)

   Reset Function



Yes

   Sensor Type



ECSCAN-C10-10K

   Power Requirements



2×1.5V "AAA" batteries

   Battery Life



Approximately 200 hours

   Dimensions



185(L)×40(Dia.)mm

   Weight



100g
