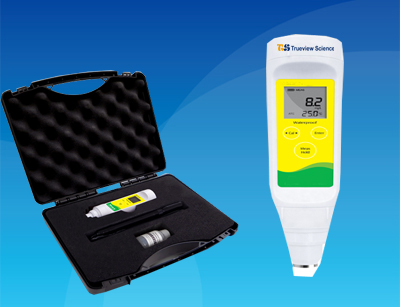

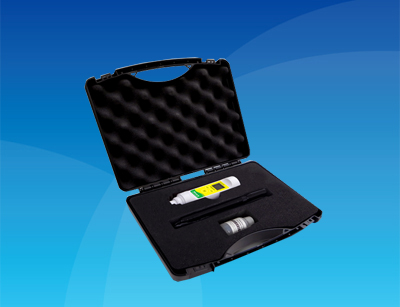

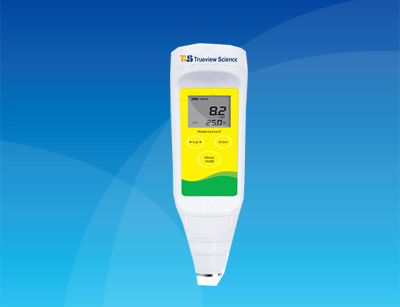

Pocket Dissolved Oxygen Meter

Basic pocket dissolved oxygen meter contains a complete setup menu, 1 or 2 points calibration. The meter is suitable for education applications. Accuracy: 0.5mg/L. Features: Basic pocket dissolved oxygen meter comes with a polarographic elec...

Standard: model: TS-OM10 E-mail: robin@pro-trueview.com

Basic pocket dissolved oxygen meter contains a complete setup menu, 1 or 2 points calibration. The meter is suitable for education applications. Accuracy: 0.5mg/L.

Features:

• Basic pocket dissolved oxygen meter comes with a polarographic electrode.
• 1 or 2 points calibration using the air-saturated water or zero oxygen solution.
• Salinity and barometric pressure compensations ensure the reliable measuring results.
• Automatic Temperature Compensation provides accurate reading over the entire range.
• Auto-Hold feature senses and locks the measurement endpoint.
• Battery indicator shows the remaining battery capacity.
• Auto-Power Off effectively conserves battery life.
• Setup menu allows setting the 6 parameters, including the number of calibration points,
  temperature unit, concentration unit, etc.
• Reset feature automatically resumes all settings back to factory default options.

Applications:

• Water and wastewater treatment
• Pond water and aquarium
• Aquaculture
• Industrial process monitoring
• Surface and ground water monitoring
• Education and other applications

Specifications:

Model



TS-OM10

   Dissolved Oxygen



   Range



0.0~20.0mg/L

   Accuracy



±0.5mg/L

   Resolution



0.1mg/L

   % Saturation of Oxygen



   Range



0.0~200.0%

   Accuracy



±2.0%

   Resolution



0.1%

   General



   Calibration Points



1 or 2 points

   Temperature Compensation



0~40°C, 32~104°F, Automatic

   Pressure Correction



60.0~112.5kPa, 450~850mmHg

   Salinity Correction



0~35g/L

   Data Hold



Manual

   Power Off



Manual or Automatic (8 minutes after last key pressed)

   Reset Function



Yes

   Sensor Type

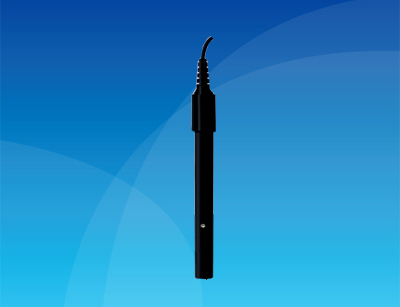

DO100 polarographic probe

   Display



LCD

   Connector



6-pin mini plug

   Power Requirements



2×1.5V "AAA" batteries

   Battery Life



Approximately 150 hours

   Dimensions



175(L)×40(Dia.)mm

   Weight



100g
