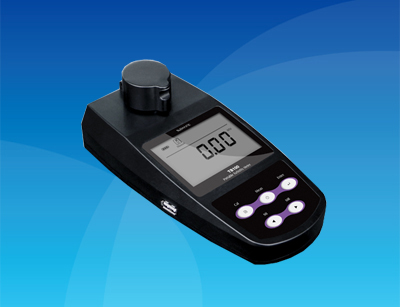

Portable Turbidity Meter
High performance portable turbidity meter, 2 to 5 points calibration, selectable 4 turbidity units. The meter is suitable for process control and field use. Features: Easy-to-use portable turbidity meter comes with a standard carrying case....
High performance portable turbidity meter, 2 to 5 points calibration, selectable 4 turbidity units. The meter is suitable for process control and field use.
Features:

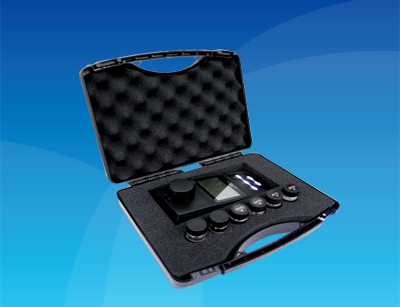

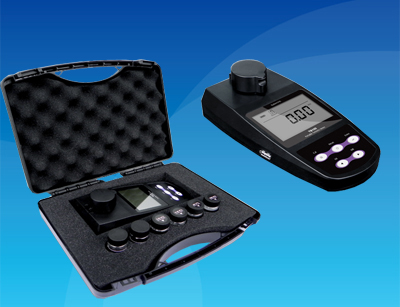

• Easy-to-use portable turbidity meter comes with a standard carrying case.
• 2 to 5 points push-button calibration using the Formazin Standards.
• Selectable 4 turbidity units, including the NTU, FNU, EBC and ASBC.
• Single measurement mode automatically recognizes and holds the stable reading.
• Continuous measurement mode can be used for indexing or matching the sample vials.
• Auto-Power Off effectively conserves battery life.
• Setup menu allows setting the 7 parameters, including the number of calibration points,
resolution, date and time, etc.
• Reset feature automatically resumes all settings back to factory default options.
• Expanded memory stores and recalls up to 100 data sets.
• Stored data can be transferred into computer by USB communication interface.
• Multi-mode power scheme (battery, power adapter or USB port) ensures that use the
meter smoothly.
Specifications:
|
Model |
TS-TM100 |
|
|
Measurement Method |
ISO 7027 nephelometric method (90°) |
|
|
Range |
0~1100 NTU/FNU, 0~275 EBC, 0~9999 ASBC |
|
|
Resolution |
0.01 (0~100 NTU), 0.1 (100~999 NTU), 1 (999~1100 NTU) |
|
|
Accuracy |
±2% (0~500 NTU), ±3% (501~1100 NTU) |
|
|
Calibration Standards |
0.02, 10, 200, 500, 1000 NTU |
|
|
Light Source |
Infrared-emitting diode (850nm wavelength) |
|
|
Detector |
Silicon photodiode |
|
|
Stray Light |
< 0.02 NTU |
|
|

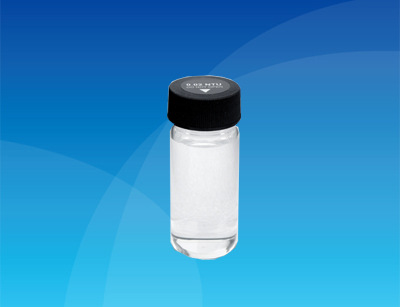

Sample Vials |
60(H)×25(Dia.)mm |
|
|
Measurement Modes |
|
Single or Continuous measurement |
|
Power Off |
|
Manual or Automatic (15 minutes after last key pressed) |
|
Reset Function |
|
Yes |
|
Memory |
|
Stores up to 100 data sets |
|
Output |
|
USB communication interface |
|
Display |
|
LCD |
|
Power Requirements |
|
1×9V/800mA battery |
|
Dimensions |
180(L)×85(W)×70(H)mm |
|
|
Weight |
300g |
