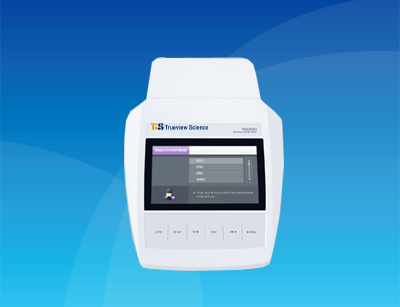

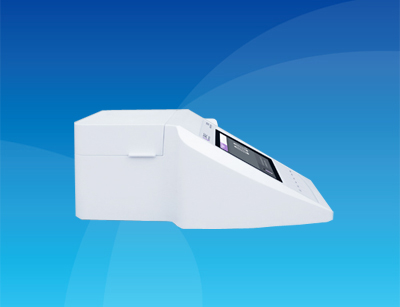

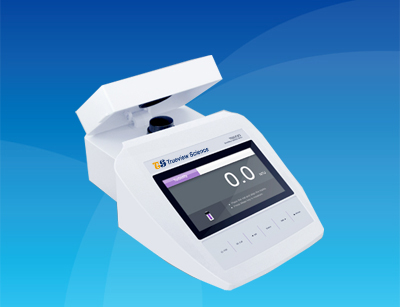

Benchtop Turbidity Meter
Standard benchtop turbidity meter with Total Suspended Solids measurement mode, 2 to 7 points calibration, selectable 4 turbidity units. The meter is suitable for laboratory use. Features: Standard benchtop turbidity meter is equipped with a...
Standard benchtop turbidity meter with Total Suspended Solids measurement mode, 2 to 7 points calibration, selectable 4 turbidity units. The meter is suitable for laboratory use.
Features:
• Standard benchtop turbidity meter is equipped with a 4.5 inches TFT display.
• 2 to 7 points push-button calibration using the Formazin Standards.
• Selectable 4 turbidity units, including the NTU, FNU, EBC and ASBC.
• TSS conversion factor ensures the accurate measurement of the total suspended solids.
• Continuous measurement mode can be used for indexing and matching the sample vials.
• Hold function freezes current reading for easy viewing and recording.
• Password protection prevents the unauthorized calibration and settings.
• Setup menu allows setting the 9 parameters, including the date and time, measurement
mode, resolution, backlight brightness, etc.
• Expanded memory stores and recalls up to 200 data sets.
• Stored readings can be transferred into the computer by USB communication interface.
• Reset feature automatically resumes all settings back to factory default options.
Specifications:
|
Model |
TS-TM200 |
|
|
Measurement Method |
ISO 7027 nephelometric method (90°) |
|
|
Turbidity Range |
0~2000 NTU/FNU, 0~500 EBC, 0~9999 ASBC |
|
|
Resolution |
0.01 (0~100 NTU), 0.1 (100~999 NTU), 1 (999~2000 NTU) |
|
|
Accuracy |
±2% (0~500 NTU), ±3% (501~2000 NTU) |
|
|
Turbidity Range |
|
Deponds on the conversion factor |
|
Calibration Standards |
|
0.02, 10, 200, 500, 1000, 1500, 2000 NTU |
|
Light Source |
|
Infrared-emitting diode (850nm wavelength) |
|
Detector |
|
Silicon photodiode |
|
Stray Light |
|
< 0.02 NTU |
|
Sample Vials |
|
60(H)×25(Dia.)mm |
|
Power Off |
|
Manual or Automatic (2 hours after last key pressed) |
|
Reset Function |
|
Yes |
|
Memory |
|
Stores up to 200 data sets |
|
Output |
|
USB communication interface |
|
Display |
|
4.5 inch TFT LCD |
|
Power Requirements |
|
DC12V, using AC adapter, 220VAC/50Hz |
|
Dimensions |
250(L)×177(W)×96(H)mm |
|
|
Weight |
1.2kg |
