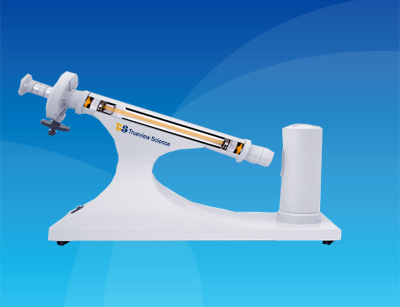

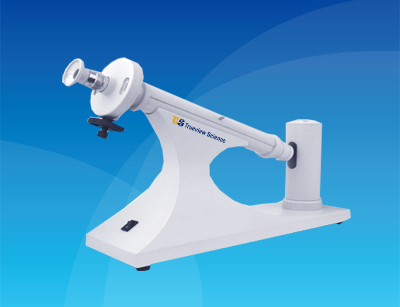

Manual Polarimeter
Easy-to-use manual polarimeter, measuring range from -180 to +180 degrees. The instrument is suitable for measuring the optical rotation of optically active substances. Accuracy: 0.05 degrees. Features: TS-MP4 polarimeter is installed with a...
Easy-to-use manual polarimeter, measuring range from -180 to +180 degrees. The instrument is suitable for measuring the optical rotation of optically active substances. Accuracy: 0.05 degrees.
Features:
TS-MP4 polarimeter is installed with a 589nm sodium lamp. Switch on the power, the polarized
light radiates to the polarizer filter. The user is able to observe the distinct visual fields through
eyepiece. Place the test tube into the measuring chamber, rotate the vernier knob until the
visual fields appear the equal brightness. Recording the measured value from thevernier scale.
Application:
• Education
• Chemical and pharmaceutical industry
• Food and sugar industry
• Other industrial applications
Specifications:
|
Model |
TS-MP4 |
|
|
Range |
-180°~180° |
|
|
Scale Value |
1° |
|
|
Vernier |
0.05° |
|
|
Magnifier |
3X |
|
|
Light Source |
Sodium lamp |
|
|
Wavelength |
589 nm |
|
|
Test Tube Length |
50/100/200mm |
|
|
Power Requirements |
220V/50Hz |
|
|
Dimensions |
500(L)×135(W)×330(H)mm |
|
|
Weight |
5kg |
